Asrock B450 Steel Legend AMD Motherboard

Asrock B450 Steel Legend AMD Motherboard
Asrock B450 Steel Legend AMD Motherboard
Asrock B450 Steel Legend AMD Motherboard
Asrock B450 Steel Legend AMD Motherboard
Asrock B450 Steel Legend AMD Motherboard
Asrock B450 Steel Legend AMD Motherboard
Asrock B450 Steel Legend AMD Motherboard
  • Stock: In Stock
  • Brand: ASRock
EMI starts at 5,429৳/month. View all 29 banks EMI plans >
15,800৳
Ex Tax: 15,800৳

Features

  • Model: Asrock B450 Steel Legend
  • Support AMD AM4 Socket CPU
  • Supports DDR4 3533+ (OC)
  • 2 PCIe 3.0 x16, 4 PCIe 2.0 x1
  • AMD Quad CrossFireX
Specification
Basic Information
Chipset AMD Promontory B450
Form Factor ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
Supported CPU AMD AM4 Socket - Digi Power design - 6 Power Phase design
BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support - Supports "Plug and Play" - ACPI 5.1 compliance wake up events - Supports jumperfree - SMBIOS 2.3 support - DRAM Voltage multi-adjustment
Ports & slots
Internal I/O Ports 1 x COM Port Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header* - 1 x Addressable LED Header** - 1 x AMD Fan LED Header*** - 1 x CPU Fan Connector (4-pin)**** - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****** - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
TPM (Trusted Platform Module ) 1 x TPM Header
Expansion Slots
PCI AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge) - 2 x PCI Express 3.0 x16 Slots (PCIE1: x16 mode; PCIE4: x4 mode) AMD Ryzen series CPUs (Raven Ridge) - 2 x PCI Express 3.0 x16 Slots (PCIE1: x8 mode; PCIE4: x4 mode) (If you use Athlon 2xxGE series APU, PCIE1 slot will run at x4 mode.) AMD Athlon series CPUs - 2 x PCI Express 3.0 x16 Slots (PCIE1: x4 mode; PCIE4: x2 mode) - 4 x PCI Express 2.0 x1 Slots - Supports AMD Quad CrossFireX™ and CrossFireX
M.2 Socket 1 x Ultra M.2 Socket
Memory Spec
Slots 4 x DDR4 DIMM Slots
Type Dual Channel DDR4 Memory Technology
Supported Memory AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3533+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory. AMD Ryzen series CPUs (Summit Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory. AMD Ryzen series CPUs (Raven Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory
Maximum Memory 64GB
Connectivity

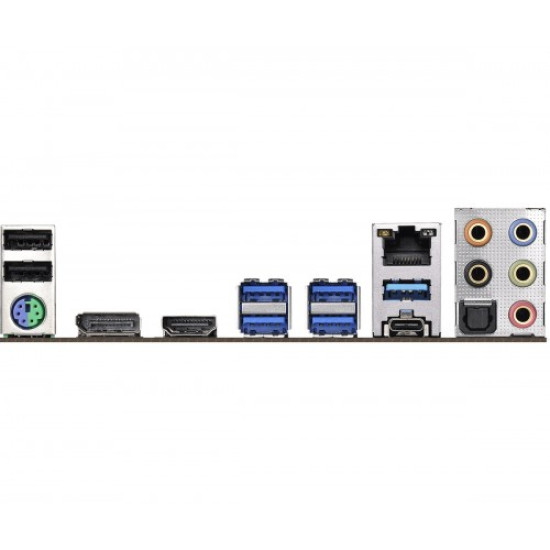

Audio Jack HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
HDMI 1 x HDMI Port
USB 2 x USB 2.0 Ports (Supports ESD Protection) 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection) 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection) 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
Display Port 1 x DisplayPort 1.2
LAN Port 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
Graphics Specs
Graphics Type -Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz - Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required) - Supports HDCP 1.4 with HDMI 1.4 and DisplayPort 1.2 Ports - Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports
Max Shared Memory 2GB
Warranty Information
Warranty 03 years

Product Description: -

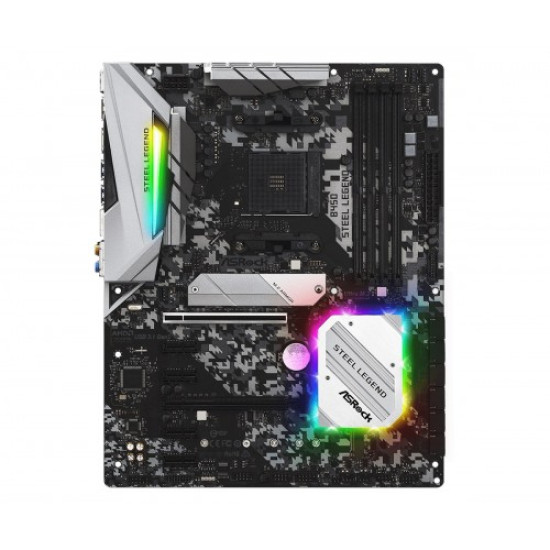

Asrock B450 Steel Legend AMD ATX Motherboard

Asrock B450 Steel Legend AMD AM4 Socket. Supports DDR4 3533+ (OC). 2 PCIe 3.0 x16, 4 PCIe 2.0 x1. AMD Quad Crossfire. Graphics Output: DisplayPort, HDMI.7.1 CH HD Audio (Realtek ALC892 Audio Codec), Nichicon Fine Gold Series Audio Caps. 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 1 M.2 (PCIe Gen3 x2 & SATA3).2 USB 3.1 Gen2 (Rear Type-A+C). 6 USB 3.1 Gen1 (2 Front, 4 Rear). Realtek Gigabit LAN

Quick Compare

Product Details
Product Asrock B450 Steel Legend AMD Motherboard GIGABYTE B560M H Intel 10th and 11th Gen Micro ATX Motherboard Asus EX-B650M-V7 AM5 micro-ATX Motherboard ASRock B550M Pro4 DDR4 AMD Motherboard
Image Asrock B450 Steel Legend AMD Motherboard GIGABYTE B560M H Intel 10th and 11th Gen Micro ATX Motherboard Asus EX-B650M-V7 AM5 micro-ATX Motherboard ASRock B550M Pro4 DDR4 AMD Motherboard
Price 15,800৳ 12,000৳ 15,500৳ 18,000৳ 16,100৳ 18,050৳ 16,200৳
Model Asrock B450 Steel Legend B560M H EX-B650M-V7 ASRock B550M Pro4
Brand ASRock GIGABYTE Asus ASRock
Availability In Stock In Stock In Stock In Stock
Rating
Based on 0 reviews.

Based on 0 reviews.

Based on 0 reviews.

Based on 0 reviews.
Summary Product Description: -Asrock B450 Steel Legend AMD ATX Motherboard Asrock B450 Steel Legend AMD AM4 Socket. Supports DDR4 3533+ (OC). 2 PCIe 3.0 x16, 4 PCIe 2.0 x1. AMD Quad Crossfire. Graphics Output: DisplayPort, HDMI.7.1 CH HD Audio (Realtek ALC892 Audio Codec), Nichicon Fine Gold Series Audio Caps. 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 1 M.2 (PCIe Gen3 x2 & SATA3).2 USB 3.1 Gen2 (Rear Type-A+C). 6 USB 3.1 Gen1 (2 Front, 4 Rear). Realtek Gigabit LAN.. Product Description:-GIGABYTE B560M H Ultra Intel 10th and 11th Gen Micro ATX MotherboardGIGABYTE B560M H Intel 10th and 11th Gen Micro ATX Motherboard supports 11th and 10th Gen Intel Core Series Processors. It has Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs. It features direct 6 + 2 Phases Digital VRM with Low RDS(on) MOSFETs. It has Shielded Memory Routing for Better Memory Overclocking. It comes with a Fully Covered Thermal Design with High Coverage MOSFET Heatsinks. It is powered by an Exclusive 8118 Gaming LAN with Bandwidth Management. It supports Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard It comes with Rear USB 3.2 Gen2 Type-C and Front USB3.2 Gen1 Type-C for Connecting Devices. It has pre-installed IO Shield for Easy and Quick Installation. RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips. Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP. Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card. It has 3 Years Warranty... Product Description: - Asus EX-B650M-V7 AM5 micro-ATX Motherboard The Asus EX-B650M-V7 Motherboard is designed to handle nonstop activity and strenuous gaming sessions. Its high-performance micro-ATX architecture offers top performance and compatibility with cutting-edge gaming technology. DDR5 memory support allows for quicker and more effective multitasking, while PCIe 5.0 offers lightning-fast data transfer for better gameplay. The Asus EX-B650M-V7 Motherboard provides a variety of connectivity choices in addition to its remarkable performance characteristics. The Realtek 2.5Gb Ethernet offers a strong and dependable internet connection, while the HDMI and USB 3.2 Gen 2 ports allow for smooth integration with peripherals and external devices. This motherboard is intended to keep players connected and engaged in their gaming experience. The Asus EX-B650M-V7 Motherboard is extremely durable. Its bright anti-moisture layer guards against any moisture damage, assuring lifespan and dependability. The Lightning startup function provides fast startup speeds, allowing gamers to hop right into their favorite games. This motherboard is designed to endure the demands of gaming while also providing a dependable and long-lasting base for gamers. The Asus EX-B650M-V7 Motherboard is ideal for gamers as well as iCafés, configure-to-order gaming systems, and quality-driven enterprises. Its unrivaled features, including LANGuard, SafeSlot Core+, USBGuard, stainless-steel rear I/O, and 5X Protection III, offer continuous endurance and protection against possible harm. As a result, it is an excellent solution for enterprises that demand a dependable and high-performance motherboard. The gaming-centric features of the Asus EX-B650M-V7 Motherboard will appeal to gamers. DDR5 memory compatibility allows gamers to enjoy quicker and more responsive gameplay. The PCIe 4.0 compatibility enables quicker data transfer, resulting in smooth, lag-free gameplay. The 128Gbps M.2 slot offers high-speed storage choices, allowing gamers to easily install and load games. Realtek 2.5 Gb Ethernet offers a strong and dependable internet connection, while ASUS Beyond VR compatibility ensures compatibility with virtual reality games. ASUS iCaf LAB has validated the Asus EX-B650M-V7 Motherboard for reboot and compatibility testing in diskless systems. This certification confirms the motherboard's dependability and compatibility with diskless-system configurations widely used in iCafés. Also, the motherboard is compatible with a broad range of devices... Product Description: -ASRock B550M Pro4 DDR4 AMD MotherboardFeatures sturdy components and completely smooth power delivery to the CPU. Plus, it provides unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well. ASRock B550M supports Dual M.2 For SSD. The Sound Tracker is the visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game. Whether user is using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers user the most engaging listening experience, vibrant and rich with details. This motherboard features onboard RGB headers and an addressable RGB header that permits motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and many more. Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that user's whole system may perform more stable. Also, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking. High Density Glass Fabric PCB design that diminishes the gaps between the PCB layers to protect the motherboard from electrical shorts caused by humidity. Packed with a D-Sub + DisplayPort + HDMI combo. Plus the HDMI port supports 4K resolution. Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause the system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent motherboard’s components from being damaged by these unexpected voltage spikes. ASRock Live Update & APP Shop is designed for user's convenience. Provides various apps and support software for users to download. This exclusive ASRock B550M Pro4 comes with 03 years of warranty...

Write a review

Note: HTML is not translated!
Bad Good

What is the price of Asrock B450 Steel Legend AMD Motherboard in Bangladesh?

The latest price of Asrock B450 Steel Legend AMD Motherboard in Bangladesh is 15,800৳ . You can buy the Asrock B450 Steel Legend AMD Motherboard at best price from our website or visit any of our showrooms. Follow us on Facebook For Regular updates & Offer.
